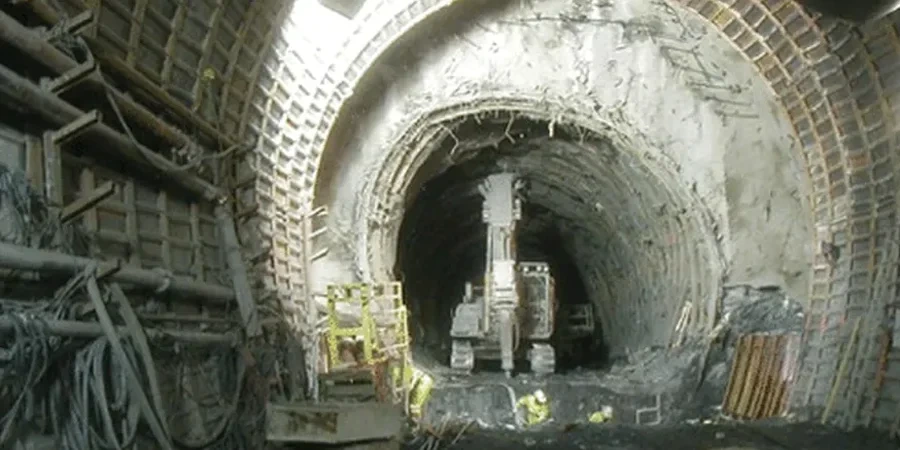

Any contractor who has worked below grade in Sarnia knows the drill: you hit the St. Clair clay till, and suddenly the ground behavior changes completely. The city sits on a deep sequence of glacial deposits with interbedded silt and clay layers that complicate any tunneling operation. We routinely see projects in Sarnia where the preliminary site investigation underestimated the plasticity of the local clay, leading to face stability issues and excessive convergence. Our geotechnical analysis for soft ground tunnels is designed specifically for these conditions, combining high-quality sampling with triaxial testing to define the undrained shear strength profile that governs excavation sequencing. Before mobilizing the TBM, it is standard practice to correlate our lab data with field CPT testing to refine the stratigraphic model across the full alignment, which is critical when crossing beneath the Highway 402 corridor or near the St. Clair River approaches.
In Sarnia's glacial clay, the difference between a successful drive and a collapse often comes down to whether the pre-construction analysis captured the true sensitivity of the soil structure.
Local ground factors
Sarnia's population of roughly 72,000 is concentrated along a narrow strip between Lake Huron and the St. Clair River, placing critical infrastructure directly on top of the soft clay plain that dominates the region. The risk profile for tunneling here is dominated by two factors: the high sensitivity of the Leda-type clays, which can lose more than 80% of their undisturbed strength when remolded, and the proximity of the groundwater table to the surface. A poorly controlled excavation in Sarnia can trigger rapid face collapse and propagate to the surface within hours, as documented in similar glacial clay formations across southern Ontario. Add to this the presence of methane pockets in the overlying peat layers near the waterfront, and you have a combination that demands rigorous gas monitoring and explosion-proof equipment. Our analysis follows the National Building Code of Canada (NBCC) and CSA A23.3 provisions for underground structures, ensuring that every support pressure calculation accounts for both short-term undrained and long-term drained conditions.
Quick answers
What is the typical cost range for a geotechnical analysis of a soft soil tunnel in Sarnia?
Depending on the alignment length, number of boreholes, and laboratory testing scope, the investment typically ranges from CA$4,990 for a preliminary desk study and limited sampling to CA$24,290 for a comprehensive program with triaxial testing, consolidation analysis, and full numerical modeling.
How do you handle the high groundwater table in Sarnia during tunnel design?
We integrate in-situ permeability tests and piezometer monitoring to define the steady-state groundwater regime. The face support pressure calculations then include the full hydrostatic head, and we specify grouting or dewatering contingencies where the Lugeon values indicate excessive inflow risk.
What distinguishes Sarnia's soil conditions from other southern Ontario cities for tunneling?
Sarnia sits on a thicker sequence of glaciolacustrine clays compared to cities on the Oak Ridges Moraine. The St. Clair clay till has a higher sensitivity and a distinct interbedded silt layer that creates preferential drainage paths, which complicates both face stability and long-term consolidation settlement predictions.
